Food/Liquid Automatic Sachet Packing Packaging Machinery of Vacuum Three/Four Sides Sealing for Sauce/Tomato Paste/Salt/Seasoning/Sugar/Milk Tea/Snacks/Tablet
Description
Basic Info
| Model NO. | MW-239C |
| Forming Function | Forming, Filling, Seal |
| Driven Type | Electric |
| Material Type | Paste |
| Packaging | Bag |
| Packaging Material | Film |
| Transport Package | Wooden Box |
| Trademark | MACWELL |
| Origin | China |
| HS Code | 8422400000 |
| Production Capacity | 200pieces/Year |
Product Description

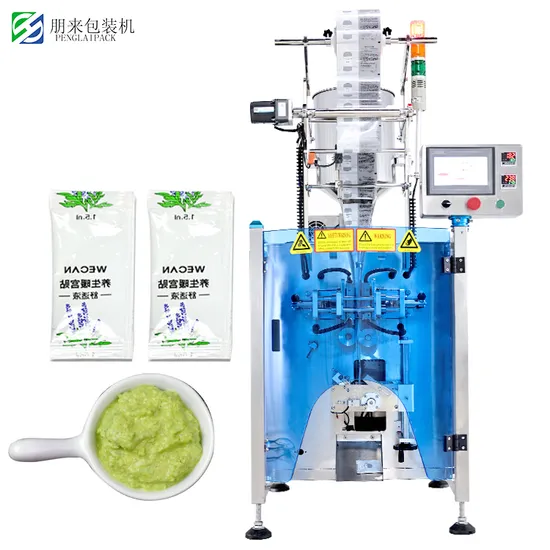

Product DescriptionMW-239C Series packing machine can carry out three or four sides sealing pouch. Equipped with different feeding device, it can pack liquid, viscosity product. If the machine has two feeding devices working at the same time, it can achieve twin pouch packing; three feeding devices for triple pouch packing.
Characteristic:
- The machine are equipped with one set of vertical sealing roller, one set of horizontal sealing roller and one set of sealing roller for strengthen. The vertical sealing roller is completed, continuous grain vein with leak-resistant line. The horizontal sealing roller is grain vein with leak-resistant line or plain sealing with leak-resistant line.
- The whole set of machine combines forming -vertical sealing--filling -horizontal sealing -horizontal strengthen sealing--notching-cutting together.
- The feeding device depends the physical state of packing product, which includes Magnetic pump device M for liquid feeling; Hibar pump device H and Rotary pump device R for homogeneous viscosity, Piston pump P for viscosity with granule;
- There are line cutter, zigzag cutter and perferative cutter of option
- PLC control, operation on HMI panel, which shows working status, servo motor driven pouch length adjustable, and with intelligent eye-mark sensor.
- Equipped with safety door, which protect operators efficient.
| Item | Content | remark |
| Pouch Length | 45~180mm | Order length +/-40mm adjustable |
| Pouch Width | 3-side sealing: 30~95mm 4-side sealing:35~100mm | Replacing a pouch former to change the pouch width |
| Packing Speed | 30~120p/m | Depends specification of product and pouch |
| Electric Power | 3kw / AC380V 3P | |
| Dimension | L1200mm× W1000mm×H1800mm | |
| Weight | 400kg or so | |
| Packing film | All laminate film Outer diameter of film roll ≤400;Inner diameter of film rollφ75 | |
| Feeding device | Liquid: Magnetic pump device (M) homogeneous viscosity: Hibar pump device (H) Rotary pump device (R) Viscosity with granule: Piston pump device (P) | Depends packing products physical characteristic |
| Optional device | Heat pressed device, Printer, Hard Air-exclusive Device, Liquid agitating device, Absorb-in device of Piston pump | Additional order |
Wide ApplicationThis automatic weighing machine is suitable for fine powder, chemical powder, edible powder, coffee powder, and other dry and mobile materials.
Various different packing shapes, such as 3-side sealing, 4-side sealing, pillow (stick) pouch, twin pouch, twin lane packing, multi-lane packing, pre-made pouch packing, etc. .
Macwell Machinery is a professional brand of packing machine which mastering product developing,manufacturing and selling service.In 27 years, Macwell Machinery has been developing, researching, manufacturing and selling 5000 sets of different kinds of soft pouch packing machines. Our machinery is reputed in China market and exports to over 30 countries ofthe world.Macwell Machinery are capable of packing liquid, viscid, powder, granular material in various fi elds, such as food industry, household and personal care industry, pharmacy and chemical industry, Macwell Machinery has gained many national patents.
